Brand name: ADT-LINK
Product name:M.2 NVMe to PCIe x16 extension cable
Product model: R43MF, R43ML, R43MR
Transferspeed:PCIe3.0 x4, gen3, 32G/bps (Max.)
Wire length:5 ~ 100 cm, the length can be customized
Application: PCIe x16 Video cards to M.2(ultra SSD, M-key)extension
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm arrow in the figure below.
Accessories description:
A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.
ADT R43 series Part-Number Description:
P/N |
Description |
Bandwidth |
R43SF |
M.2 NVMe to PCIe x16, connector turn 180o splint vertical extension cables |
PCIe 3.0 x4 (32G/bps) |
R43SR | M.2 NVMe to PCIe x16, connector turn 270o inverted reverse extension cables |
PCIe 3.0 x4 (32G/bps) |
R43SL |
M.2 NVMe to PCIe x16, connector turn 90o extension cable |
PCIe 3.0 x4 (32G/bps) |
R43MF |
M.2 NVMe to PCIe x16, cable turn right, connector turn 180o extension cable |
PCIe 3.0 x4 (32G/bps) |
R43ML |
M.2 NVMe to PCIe x16, cable turn right, connector turn 270o extension cable |
PCIe 3.0 x4 (32G/bps) |
R43MR |
M.2 NVMe to PCIe x16, cable turn right, connector turn 90o extension cable |
PCIe 3.0 x4 (32G/bps) |
R43UF |
M.2 NVMe to PCIe x16, cable turn left, connector turn 180o extension cable |
PCIe 3.0 x4 (32G/bps) |
R43UL |
M.2 NVMe to PCIe x16, cable turn left, connector turn 270o extension cable |
PCIe 3.0 x4 (32G/bps) |
R43UR |
M.2 NVMe to PCIe x16, cable turn left, connector turn 90o extension cable |
PCIe 3.0 x4 (32G/bps) |
|
|
|

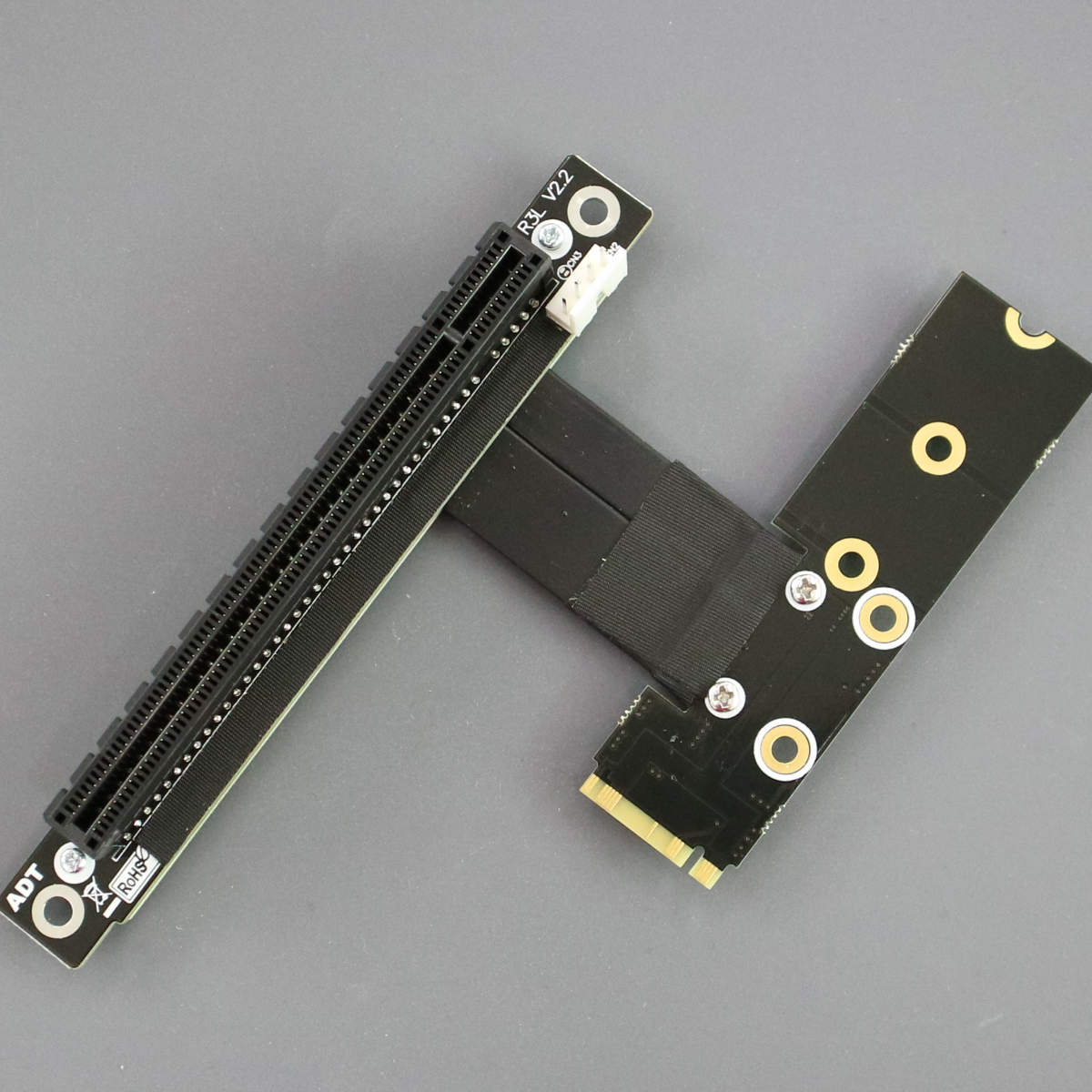

Photo:
Q&A:
Is there any EMI shielding for Cable?
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
Download:
To open 3D PDF files. Please use Adobe Reader DC software.
FTP: Los Angeles
3D model PDF files download http://www.adt.link/Uploads/download/ADT_R43_3D.zip
3D model STEP files download http://www.adt.link/Uploads/download/ADT_R43_STEP.zip
Spec download http://www.adt.link/Uploads/download/ADT_R43ML Cable specification 20200411.pdf
FTP: Hong Kong
3D model PDF files download http://www.adtlink.cn/Uploads/download/ADT_R43_3D.zip
3D model STEP files download http://www.adtlink.cn/Uploads/download/ADT_R43_STEP.zip
