Vertical Extension Cable

  • R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR
  • R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR
  • R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR
  • R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR
  • R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR
  • R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR
R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33URR33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33URR33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33URR33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33URR33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33URR33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR

R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UQ, R33UR

  • Product ID: R33UF, R33UF-TU, R33UF-V4, R33UL, R33SF-TU, R33UH, R33UR
  • Interface: PCIe x16 / PCIe x16
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: PCIe x16 to x16 adapter for graphics video cards extension. design for ITX motherboard and chassis mini pc-case
  • INQUIRY

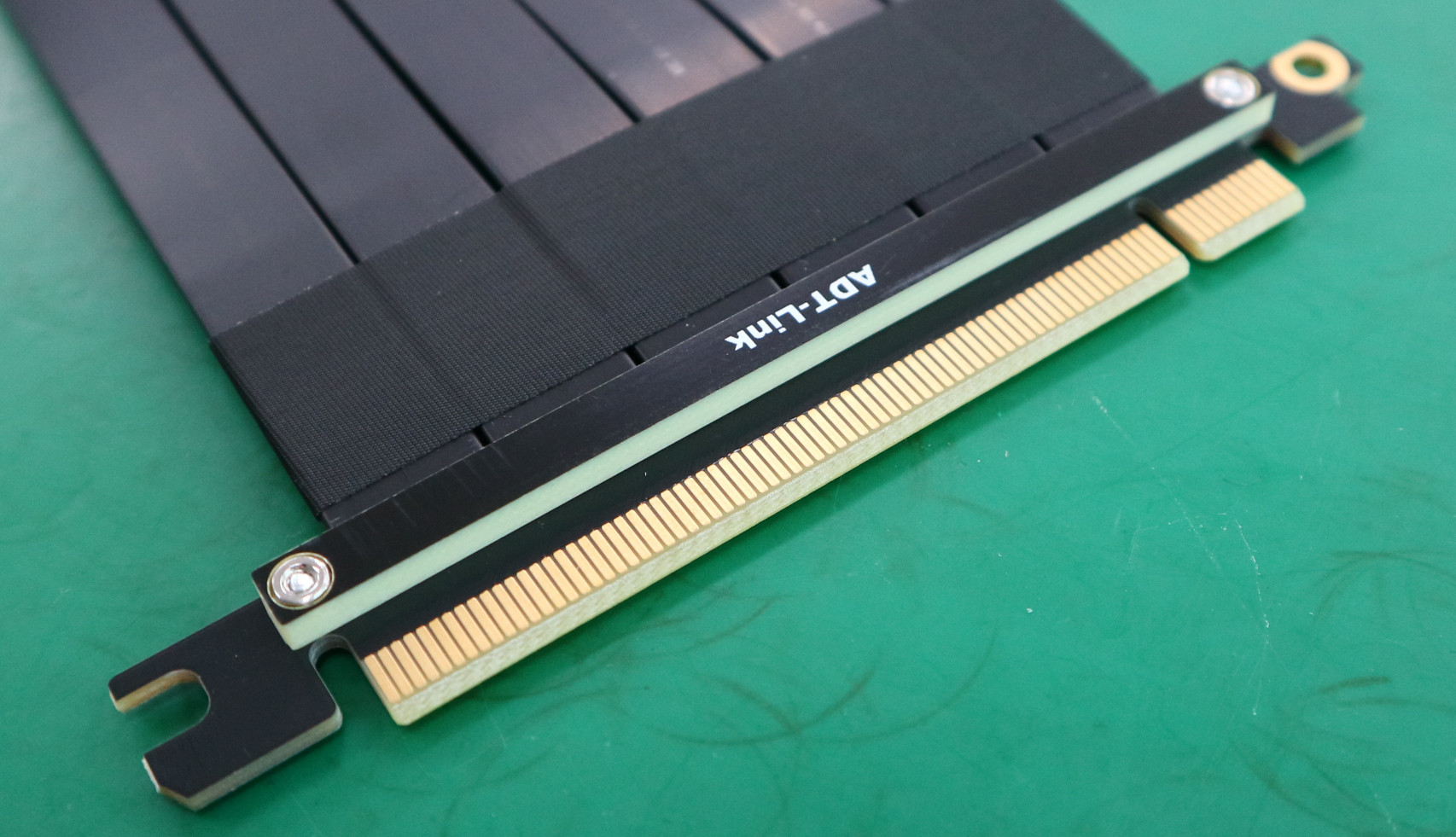

ADT-Link PCI express 3.0 x16 Extension Cable for ITX

Brand name: ADT-LINK

Product name: PCIe x16 to x16 extension cable for ITX

Product model: R33UF-TU , R33SF-TU , R33UL , R33UF, R33UH, R33UF-V4, R33UR

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable for ITX mainboard housing


ADT R33_ITX series Part-Number & Photo:

Part-Number
Description
Bandwidth
R33UL PCI-E x16 to x16 turn 90 degree upright right angle extension cables PCIe 3.0 x16 (128G/bps)
R33UF-TU
PCI-E x16 to x16 turn 180 degree splint vertical extension cables PCIe 3.0 x16 (128G/bps)
R33UF-V4 PCI-E x16 to x16 turn 180 degree splint vertical extension under development PCIe 4.0 x16 (256G/bps)
R33UF PCI-E x4 to x4 turn 180 degree splint vertical cables support SMBUS, WAKE# PCIe 3.0 x16 (128G/bps)
R33SF-TU PCI-E x16 to x16 turn 180 degree splint vertical extension cables
PCIe 3.0 x16 (128G/bps)
R33UH PCI-E x16 to x16 turn 90 degree upright right angle extension cables
PCIe 3.0 x16 (128G/bps)
R33UR PCI-E x16 to x16 turn 270 degree downright right angle extension cables
PCIe 3.0 x16 (128G/bps)

R33: PCIe x16 to x16

Cable length Description:

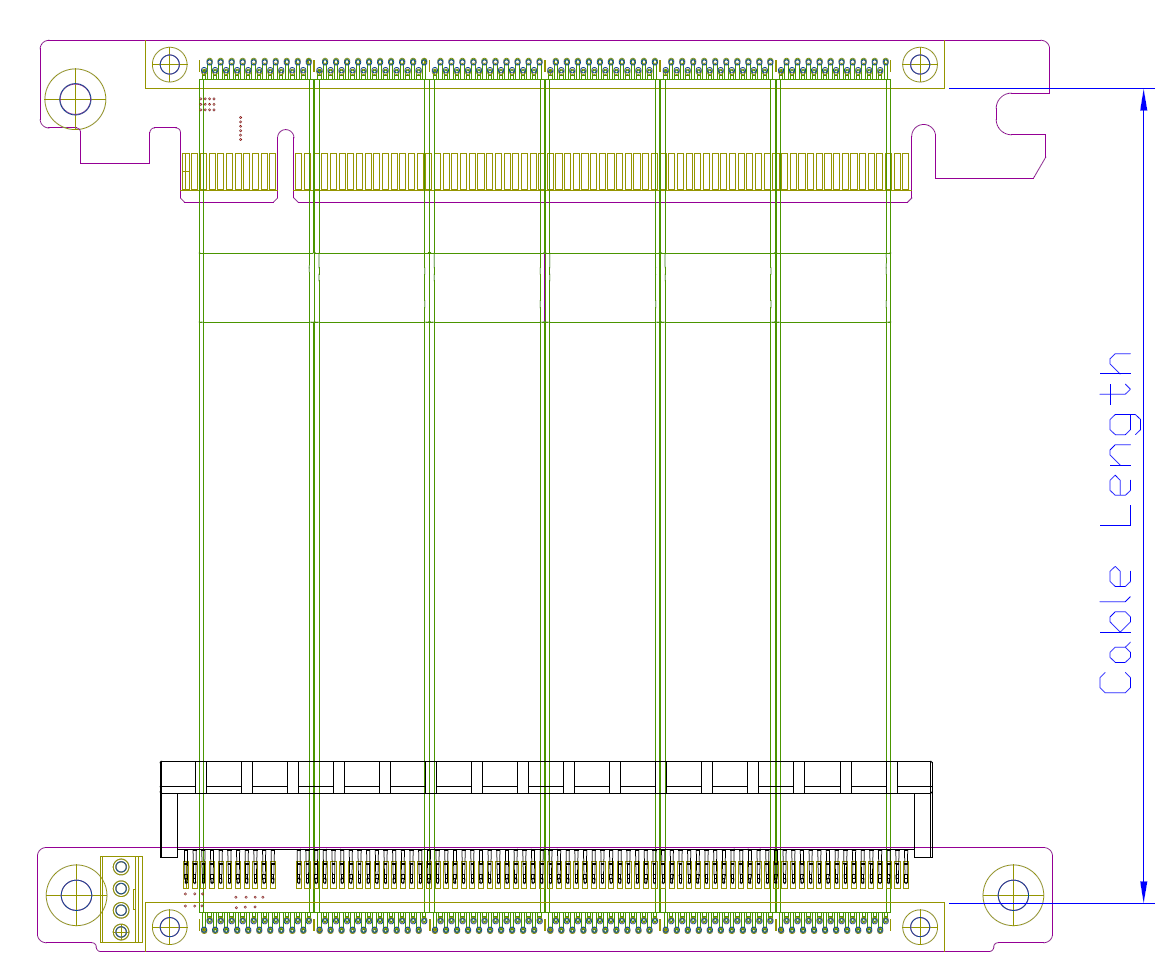

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 10cm blue arrow in the figure below.

Compatibility list:

ITX Chassis model , ADT model , Note

zs-a4 R33UL 18cm
zs-a4m R33UL 18.5cm
zs-4s R33UL 18.5cm
zs-a4dc R33UL 18.5cm
TBOX M41 R33UF-TU 18.5cm
D-A4W R33UF-TU 19.5cm
D-A4L R33UF-TU 18cm
LZmod LZ-A4 R33UF-TU 20cm
sunmilo T03 R33UF-TU 18.5cm
GEEEK A31 a4 sfx R33UF-TU 17.5cm
GEEEK A35 a4 sfx R33UF-TU 18cm
GEEEK A50 a4 sfx R33UF-TU 18cm
GEEEK A50x a4 sfx R33UF-TU 18cm
DAN Cases A4-SFX V3 R33UF-TU 18.5cm
cube x1 R33UF-TU 18.5cm
cube x1m R33UF-TU 18.5cm
makertime A2 R33UF-TU 18.5cm
SeaDamaged SE mini4 R33UF-TU 17.5cm
