PCIe x4 to PCIe x4 Extender

  • R22SF,R22SL,R22SR
  • R22SF,R22SL,R22SR
  • R22SF,R22SL,R22SR
  • R22SF,R22SL,R22SR
R22SF,R22SL,R22SRR22SF,R22SL,R22SRR22SF,R22SL,R22SRR22SF,R22SL,R22SR

R22SF,R22SL,R22SR

  • Product ID: R22SF,R22SL,R22SR
  • Interface: PCIe x4 / PCIe x4
  • Application: Extension
  • Shelf time:2019-01-10 11:07:19
  • Product description: PCIe x4 extender adapter jumper for Capture Card, RAID SSD, gigabit LAN, usb cards.
  • INQUIRY

ADT-Link PCI express 3.0 x4 Extension Cable

Brand name: ADT-LINK

Product name:PCIe x4 extension cable

Product model:R22SF,R22SL,R22SR

Transferspeed:PCIe3.0 x4 full speed, 32G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized

Application: PCIe x4 Capture Card , RAID SSD, LAN, USB cards,extension


ADT R22 series Part-Number Description:

Part-Number
Description
Bandwidth

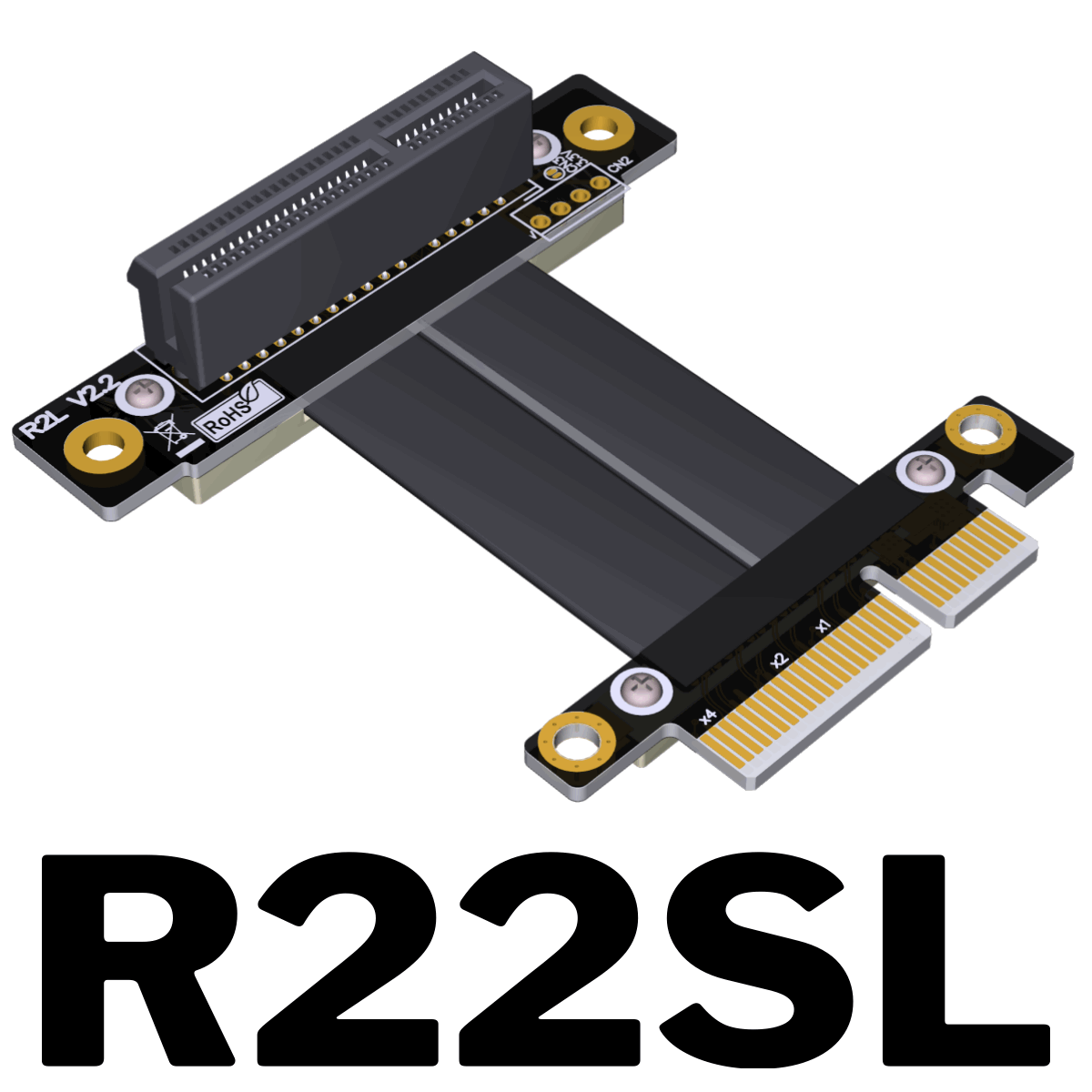

R22SL PCI-E x4 to x4 turn 90 degree upright right angle extension cables PCIe 3.0 x4 (32G/bps)
R22SF
PCI-E x4 to x4 turn 180 degree splint vertical extension cables PCIe 3.0 x4 (32G/bps)
R22SR PCI-E x4 to x4 turn 270 degree inverted reverse extension cables PCIe 3.0 x4 (32G/bps)
R22AB
PCI-E x4 to x4 turn 180 degree splint vertical cables support SMBUS, WAKE#
PCIe 3.0 x4 (32G/bps)

R22: PCIe x4 to x4

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-PW solder 4P power connector and bundle 15Pin SATA external power cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R22_3D.zip

Specification files download http://www.adt.link/Uploads/download/ADT_R22SF Cable specification 20200107.pdf

FTP: Hong Kong

3D STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R22_3D.zip

WebShop:

http://www.adt.link/product/R22-Shop.html

http://www.adt.link/product/R22AB-Shop.html

PayPal Acceptance Mark

PREVIOUS:R16SF (Shop) NEXT:R22 (Shop)
