ADT-Link PCI express 3.0 x1 to x4 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x1 to x4 extension cable

Product model: R12SF,R12SL,R12SR,R12SL-FL,R12SL-FL-PA2

Transfer speed: PCIe3.0 x1 to x4 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: PCIe x4 NVMe SSD, LAN, USB cards, extension


ADT R12 series Item List:

Part-Number
Description
Bandwidth
R12SF
PCI-E x1 to x1 turn 180 degree splint vertical extension cables. PCIe 3.0 x1 (8G/bps)
R12SL
PCI-E x1 to x1 turn 90 degree upright right angle extension cables
PCIe 3.0 x1 (8G/bps)

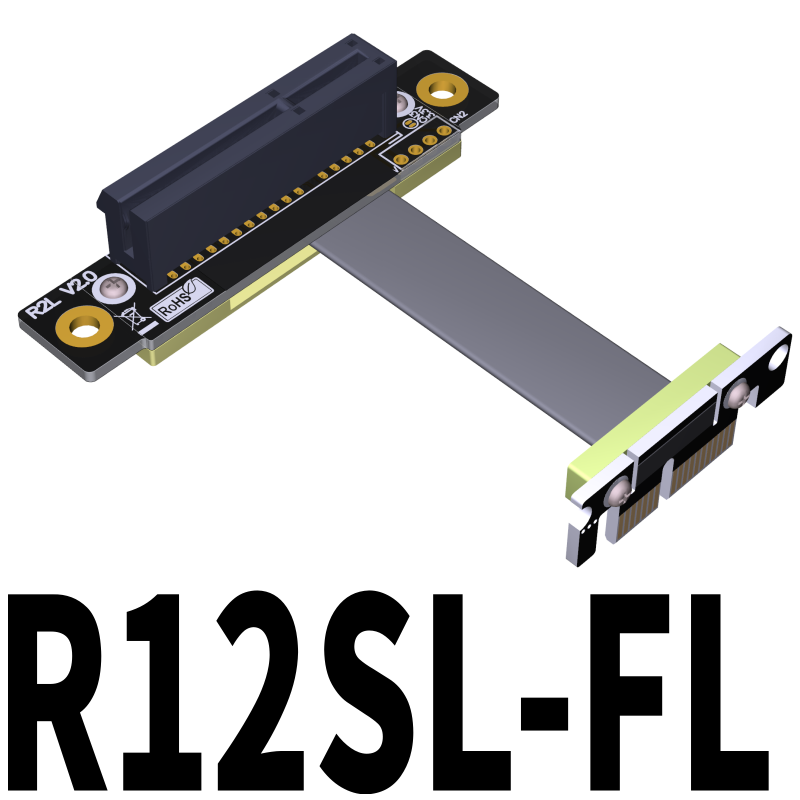

R12SL-FL PCI-E x1 to x1 turn 90 degree upright dual right angle extension cables.
PCIe 3.0 x1 (8G/bps)
R12SL-FL-PA2 PCI-E x1 to x1 turn 90 degree upright dual right angle extension cables. Add magnetic feet.
PCIe 3.0 x1 (8G/bps)
R12SR
PCI-E x1 to x1 turn 270 degree inverted reverse extension cables
PCIe 3.0 x1 (8G/bps)



Part-Number Description:

R12: PCIe x1 to x4

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-WK: GPU mining cost-down version.

-FL: PCIE edge turn 90 degree.

-PA2 including 2PCS magnetic feet ; -PA4 including 4PCS magnetic feet and PCB-PAD

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.
