Adapter

  • ADT-WK2
ADT-WK2

ADT-WK2

  • Product ID:ADT-WK2
  • Interface: Micro SD / M.2 Key A.E.
  • Application: SD Card Adapter
  • Shelf time:2019-02-18 11:07:19
  • Product description: ADT-WK2 micro SD to M.2 Key A.E. adapter
  • INQUIRY

ADT-Link micro SD to M.2 key A.E. adapter

Brand name: ADT-LINK

Product name: micro SD to M.2 A.E. adapter

Product model: ADT-WK2

Transfer speed: 25MB/Sec (Max.)

Weight: 2g

Dimension: M.2 NGFF key A.E.(2230) 22mm x 30mm

Application: micro SD card-reader


Part-Number Description:

Part-Number
Description
Speed
ADT-WK2 micro SD to M.2 key A.E. (M.2 WiFi slot) adapter 25MB/Sec (Max.)





Features:
USB specification compliance
- Comply with 480Mbps Universal Serial Bus specification rev. 2.0
- Comply with USB Storage Class specification rev. 1.0
- Support one device address and up to four endpoints: Control (0)/Bulk Read (1)/Bulk Write (2)/Interrupt (3)
Integrated USB building blocks
- USB2.0 transceiver macro (UTM), Serial Interface Engine (SIE), Build-in power-on reset (POR) and low-voltage detector (LVD)


Secure DigitalTM (SD) and MultiMediaCardTM (MMC)
- Supports SD specification v1.0 / v1.1 / v2.0 / SDHC (Up to 32GB)
- Compatible with SDXC (Up to 2TB)
- Supports 1 / 4 bit data bus
Support boost mode for SD3.0 for better performance
Support LED function to indicate power and access status


System requirement:

• One free M.2 key A.E. socket (WiFi slot)

• Windows 7/8/10, Mac OS

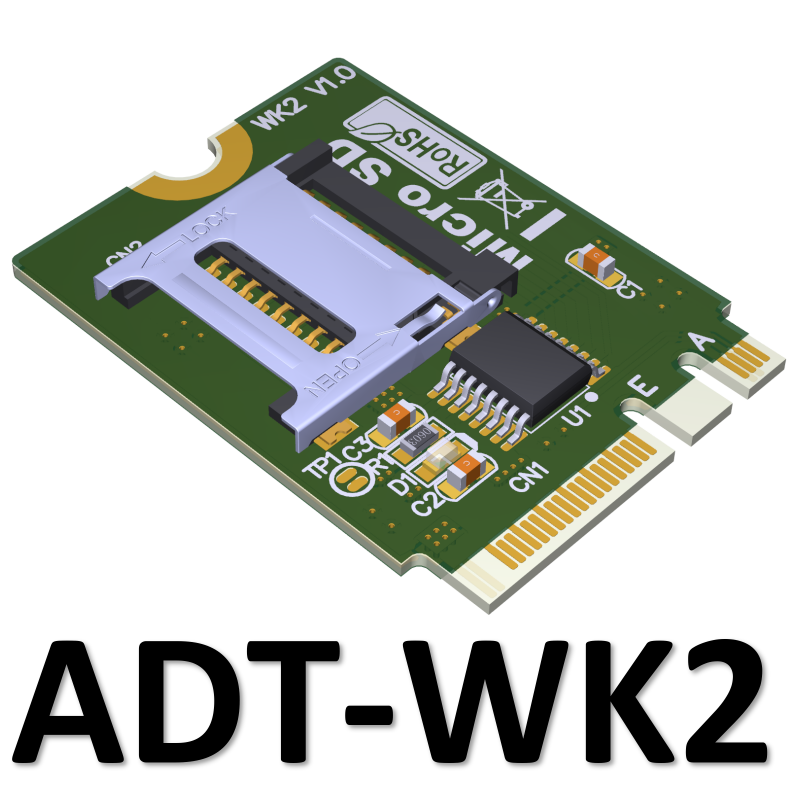

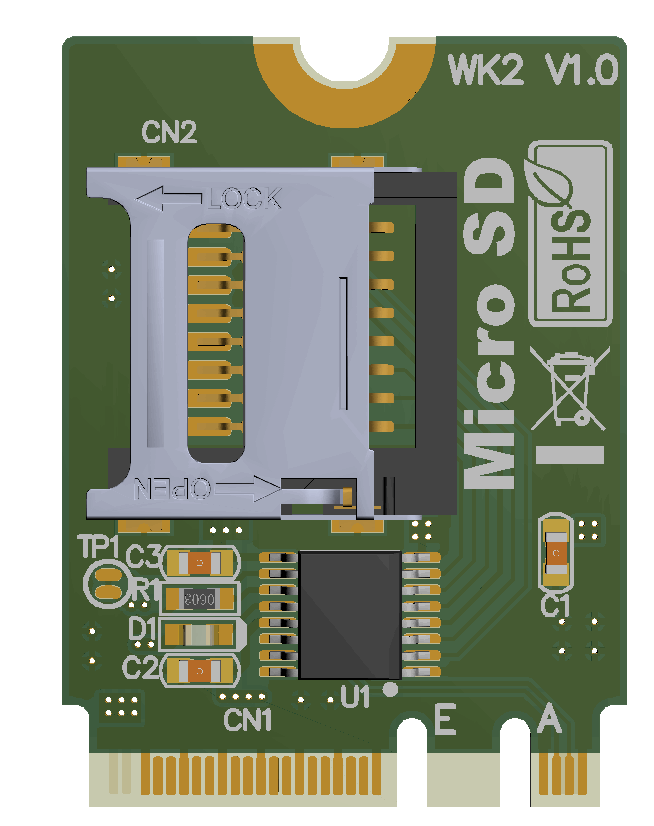

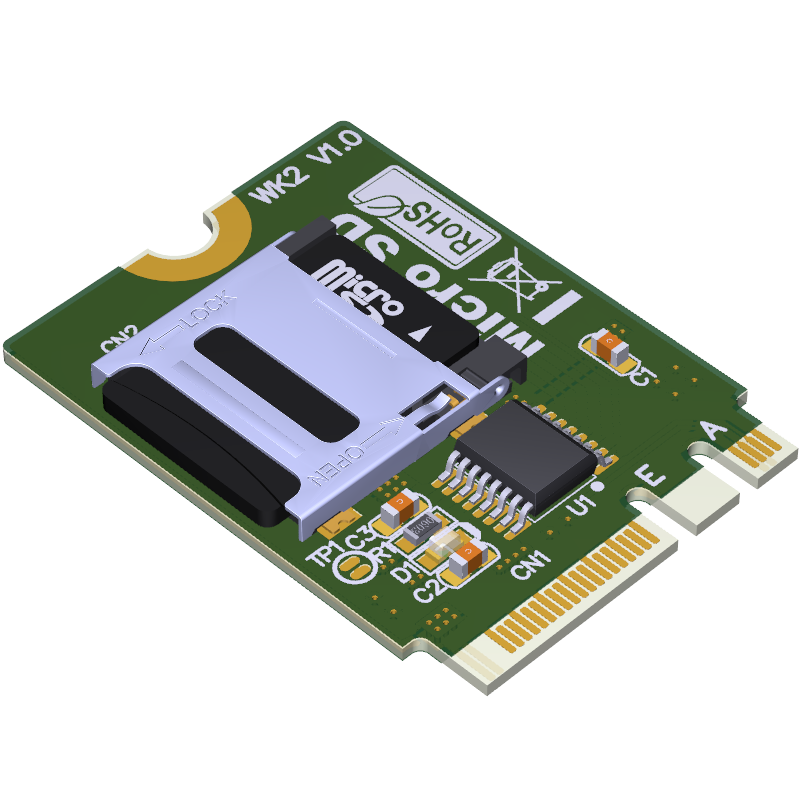

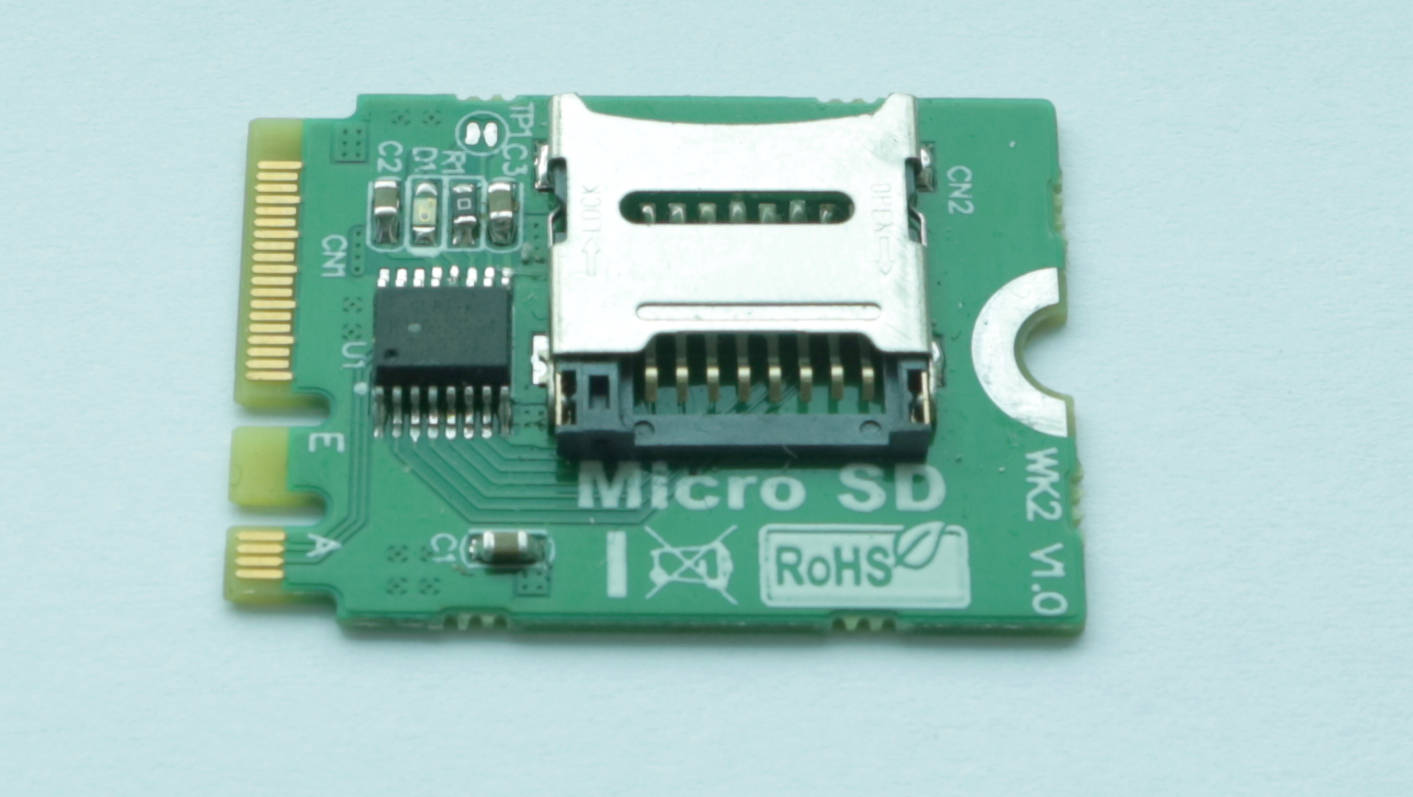

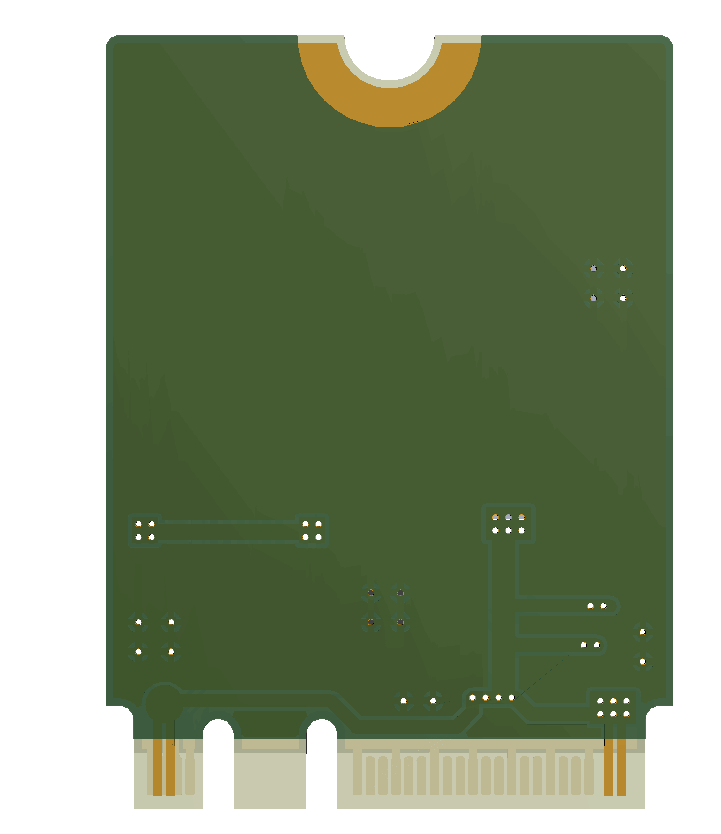

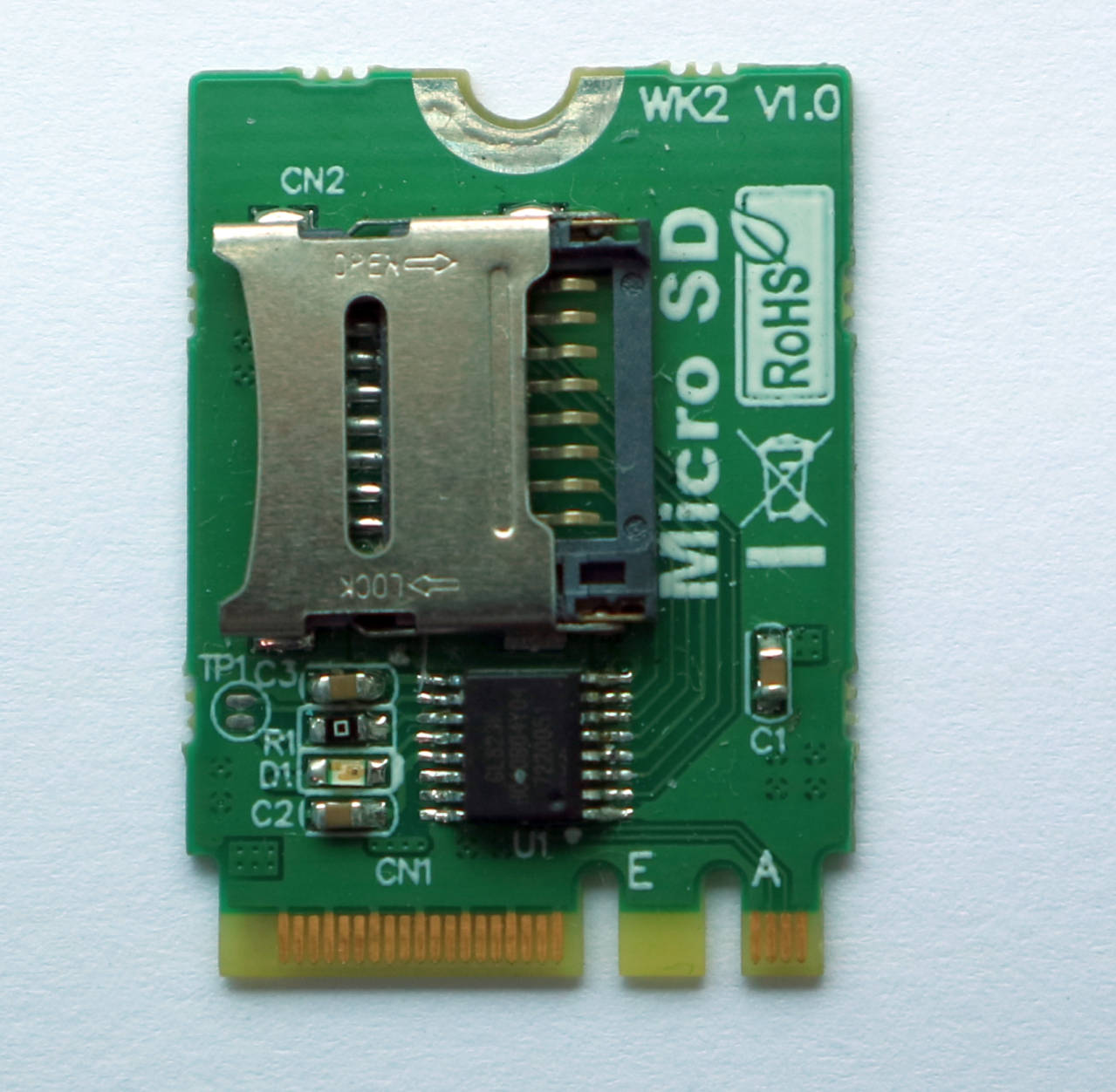

Photo:


Download:

To open 3D PDF files. Please use Adobe Reader DC software.


FTP: Los Angeles

3D PDF files download http://www.adt.link/Uploads/download/ADT_WK2_3D.zip

FTP: Hong Kong

3D PDF files download http://www.adtlink.cn/Uploads/download/ADT_WK2_3D.zip


WebShop:

http://www.adt.link/product/ADT-WK2-Shop.html
