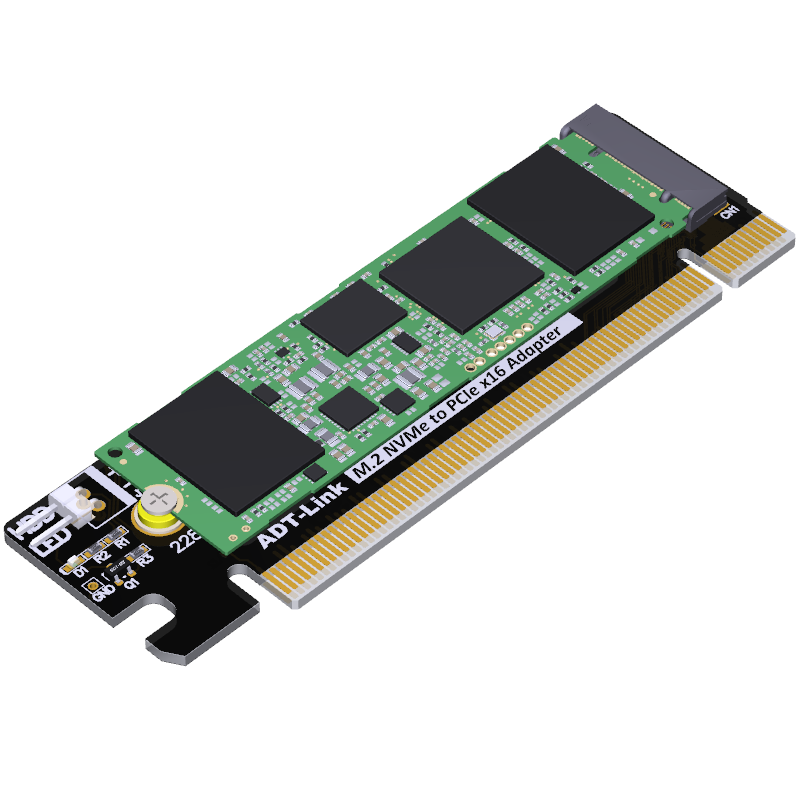

ADT-Link R43A M.2 NVMe SSD to PCie x16 Adapter

Brand name: ADT-LINK

Product name: M.2 NVMe SSD to PCie x16 Adapter

Product model: R43A

Transfer speed: PCIe 3.0 x4, 32G/bps (Max.)

Weight: 9g

Application: M.2 key M, NVMe SSD to PCI-E x16 slot

ADT R43A Part-Number Description:

Part-Number	Description	Bandwidth
R43A	M.2 key-M to PCIe x16 adapter	PCIe 3.0 x4 (32G/bps)

Features:
Converts one M.2 (M Key) NVMe interface to PCIe 3.0 x16 interface (PCIe 2.0 Compatible), No drivers required.
Supports PCIE M.2 SSD (NVMe-based M.2 SSD only, Key-M), PCIE 3.0 X4 32 Gbps bandwidth.
Not supported SATA-based M.2 SSD.
Apply to 2280/2260/2242 / 2230mm M.2 SSD.
Support Access LED (HDD LED)
PCIE X16 lane installation.
Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard.
( If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that!)
Compatible with Windows/MAC/Linux, no driver required.
(Note: Win7 and Windows Server 2008 R2 are not compatible with NVME SSD).
Operating temperature range: -40 - 85 oC.
PCIE power supply: 3.3V.
Size: 100 (L) x32 (W)x5(H) mm / 3.9x1.5x0.2 in.
